Curve Tent

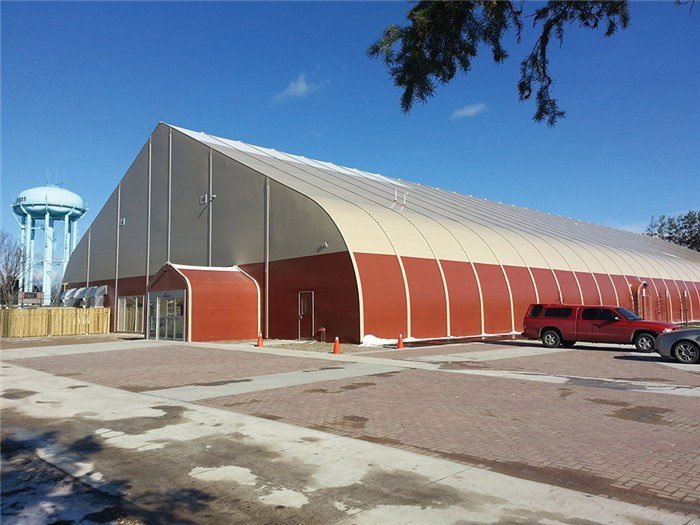

The Curve Tent series, developed independently by SBR’s technical team in 2015, has gained worldwide popularity and praise for its high quality and elegant design. Unlike traditional A-shaped tents, the Curve Tent features a unique shape. It has a modular structure that can be expanded or reduced in 5-meter increments. The framework is made from hard-pressed extruded aluminum alloy (6061/T6), and the roof and sidewalls are crafted from flame-retardant, double PVC-coated polyester fabric, adhering to European DIN4102B1 and M2 quality control standards.

The Curve Tent is not only strong but also highly durable, with wind resistance up to 100km/h (0.5kn/m²). Its modular design allows for flexible expansion, easy assembly and dismantling, and compact storage. Suitable for both temporary events and permanent installations, the tent boasts enhanced wind and snow resistance thanks to bent aluminum roof beams and a superior tensioning system for the roof cover.

A variety of optional accessories can expand the functionality of the Curve Tent. These include PVC fabric sidewalls with arched clear windows, ground anchors, weight plates, decorative roof linings and side curtains, glass and ABS solid walls, steel sandwich panels, corrugated steel walls, glass doors, sliding doors, roller shutters, transparent roof covers and sidewalls, flooring systems, hard PVC rain gutters, bell ends, and more.

Product Description

The Curve Tent series, developed independently by SBR’s technical team in 2015, has gained worldwide popularity and praise for its high quality and elegant design. Unlike traditional A-shaped tents, the Curve Tent features a unique shape. It has a modular structure that can be expanded or reduced in 5-meter increments. The framework is made from hard-pressed extruded aluminum alloy (6061/T6), and the roof and sidewalls are crafted from flame-retardant, double PVC-coated polyester fabric, adhering to European DIN4102B1 and M2 quality control standards.

The Curve Tent is not only strong but also highly durable, with wind resistance up to 100km/h (0.5kn/m²). Its modular design allows for flexible expansion, easy assembly and dismantling, and compact storage. Suitable for both temporary events and permanent installations, the tent boasts enhanced wind and snow resistance thanks to bent aluminum roof beams and a superior tensioning system for the roof cover.

A variety of optional accessories can expand the functionality of the Curve Tent. These include PVC fabric sidewalls with arched clear windows, ground anchors, weight plates, decorative roof linings and side curtains, glass and ABS solid walls, steel sandwich panels, corrugated steel walls, glass doors, sliding doors, roller shutters, transparent roof covers and sidewalls, flooring systems, hard PVC rain gutters, bell ends, and more.

Material Introduction

Span Width

(Meter)

Eave Height

(Meter)

Ridge Height

(Meter)

Bay Distance

(Meter)

Main Profile

(Meter)

12m 3.87m 6.93m 5m 204x120x4mm (4 – channel)
15m 3.87m 8m 5m 204x120x4mm (4 – channel)
20m 3.89m 8.98m 5m 256x121x5mm (4 – channel)
25m 3.89m 10m 5m 256x121x5mm (4 – channel)
30m 3.89m 11.2m 5m 300x120x5mm (4 – channel)
40m 3.89m 13.5m 5m 300x120x5mm (4 – channel)



Structure Diagram

Install Video

FAQ

Q : Could you print our logos on the tent?

A : Yes, customized logos can be printed on the tent fabric based on your specifications.

Q : Can your tent be installed multiple times?

A : Our tents are designed for easy assembly and dismantling, allowing for repeated use with a compact transportation size. The aluminum framework has a lifespan of 15–20 years, while the PVC fabrics last between 5–8 years, depending on the conditions of use.

Q : Is your tent sturdy and stable? What is its wind resistance?

A : Yes, the main framework, including the upright supports and roof beams, is made from high-impact extruded anodized aluminum (6061/T6), ensuring the tent structure is safe and strong. It can withstand wind speeds of up to 100 km/h.

Q : What is the duration of the warranty?

A : We offer a one-year warranty. During this period, we will repair or replace any damaged parts caused by quality issues.

Q : Is this the factory price?

A : Yes, we guarantee that all prices are factory-direct.

Q : What is the estimated delivery time?

A : The delivery time is 15–20 days after receiving the deposit.

Q : What are the payment terms?
A : Typically, the payment terms are 30% via TT before production and 70% via TT before loading.
